Beschreibung
The 12-gang switch panel control system upgrades the wiring options to two---connecting to ACC (accessory) or the battery, provides users with flexibility in how they want to power and control the switch panel. In addition, the upgraded switch panel system provides 140 labels for user customization, allows you to control up to 12 different auxiliary LED lights or electrical devices for 4WDs, SUVs, Caravans, and Trucks. Backed with a rugged brushed aluminum body and dimmable RGB Backlight Display, the universal 12-gang switch panel is the perfect accessory to centralize your accessories, simplifying the installation process.
Features:
- Control up to 12 different led lights or electrical devices
- Dual control options – Bluetooth app and RGB switch panel
- Four 30A circuits, two 20A circuits, two 15A circuits and four 10A circuits
- 100 Amp circuit breaker, Maximum Current 100A input
- Build-in solid-state relay for faster response time and lower energy consumption
- 3 functions/Silicone Buttons on the switch panel: memory function, Brightness Adjustment Button, rgb Color Adjustment Button
- 8 single colors to change and 5-level brightness adjustment
- 140 self-adhesive labels
- Extra 5 spare fuses for easy replacement
- Two wiring options on the control box: connect to ACC or battery
Dual Control Options:

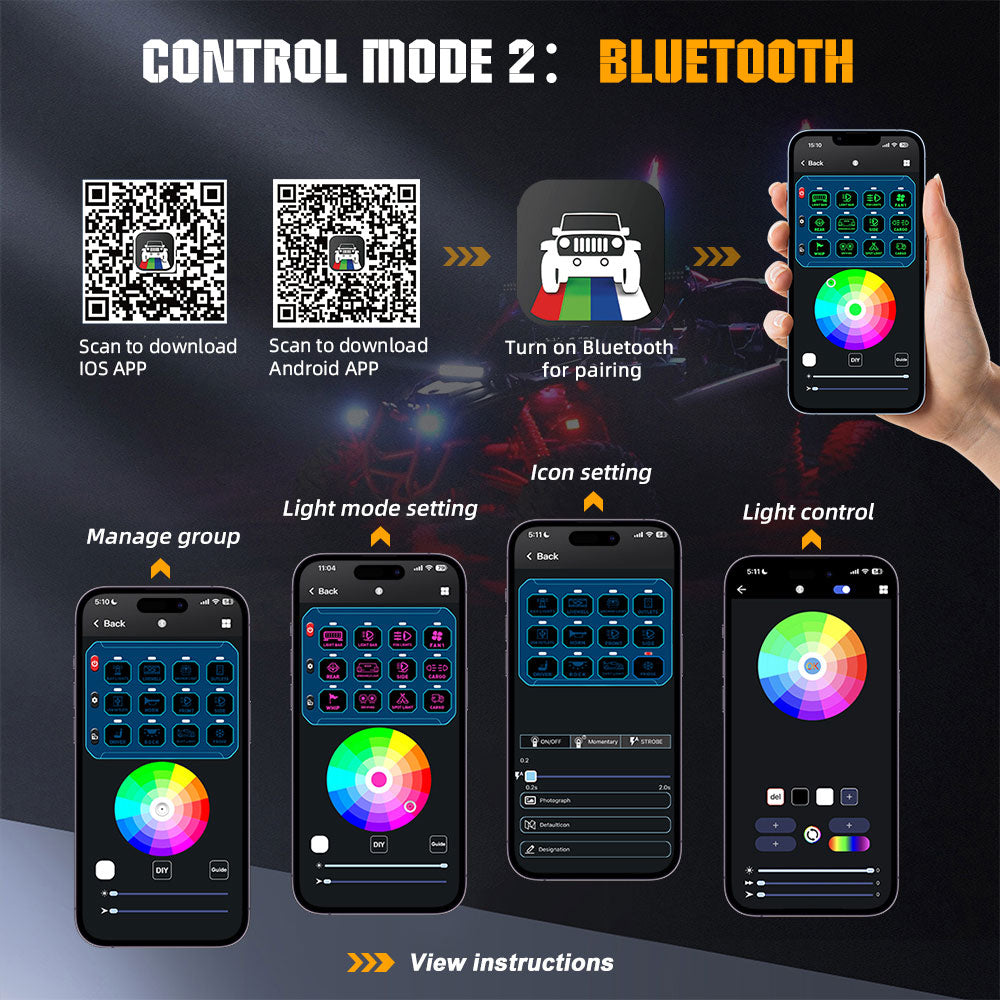

Upgrade your driving experience with dual control options – Bluetooth app and RGB switch panel. Set backlight colors, lighting modes, and control modes effortlessly. Showcase your new setup anytime, anywhere by connecting your smartphone via Bluetooth. The app allows you to choose default lighting modes or even customize your own. Easily identify each button's function with default icons or personalize them by snapping pictures of your devices and renaming buttons in the app.
ACC or Battery Wiring Options:

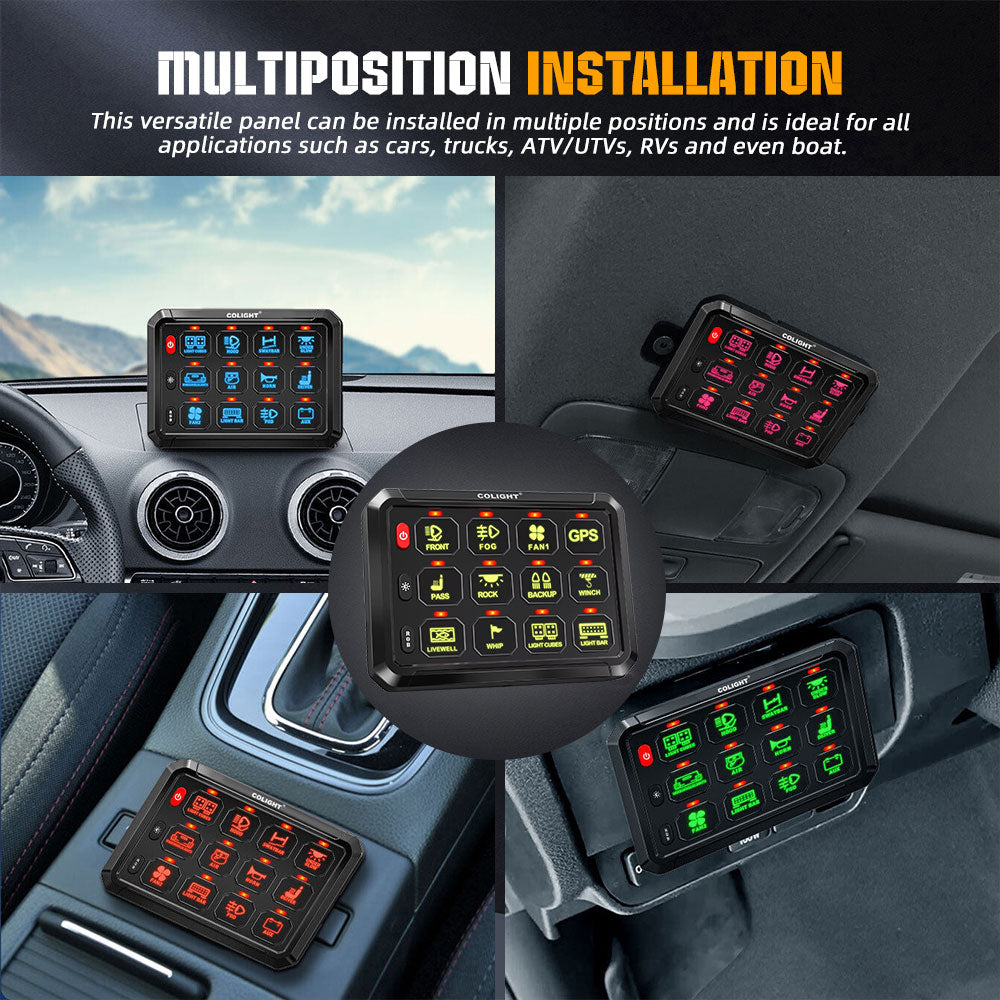

The RGB 12 Gang switch panel offers two wiring options: connect to ACC or battery. The control box features a button switch for easy and safe toggling between ACC or battery power. The switch panel also supports two installation modes: vertical or horizontal, allowing flexibility in positioning the control box and switch panel.

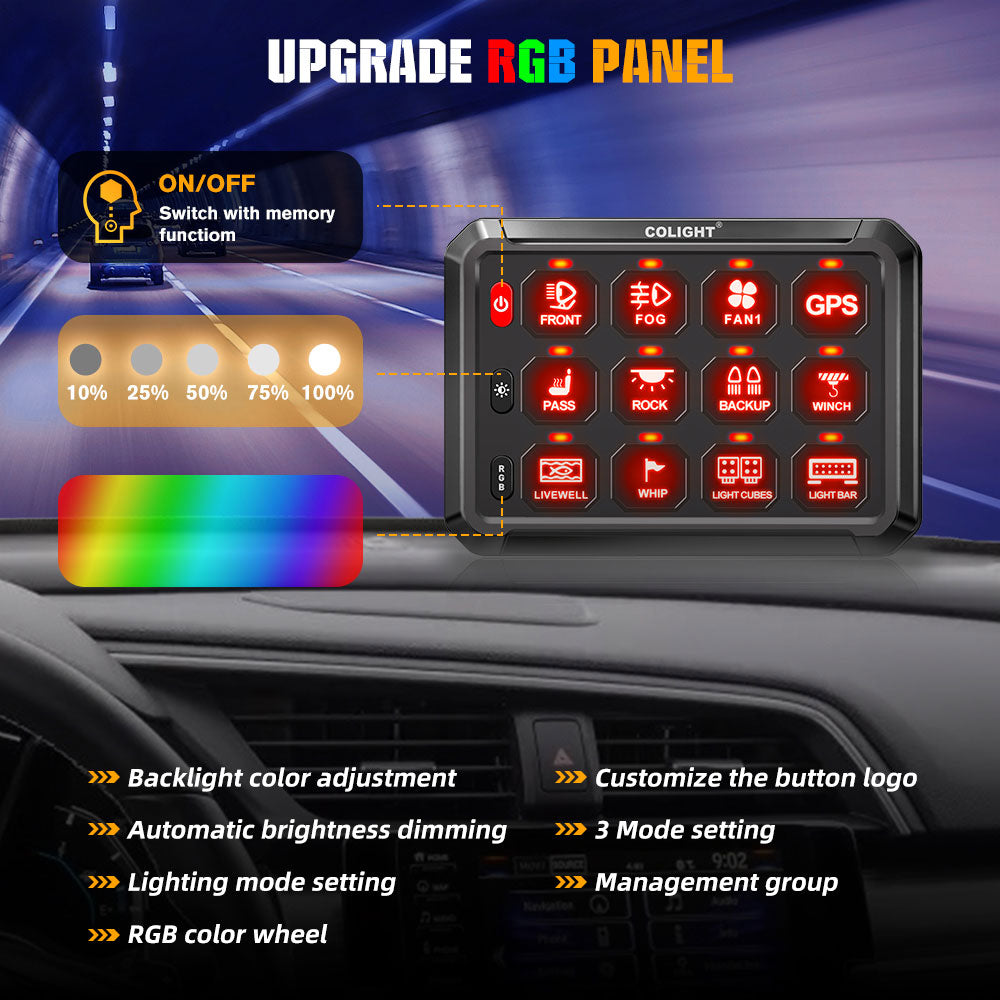

Multi-Function on the Switch Panel

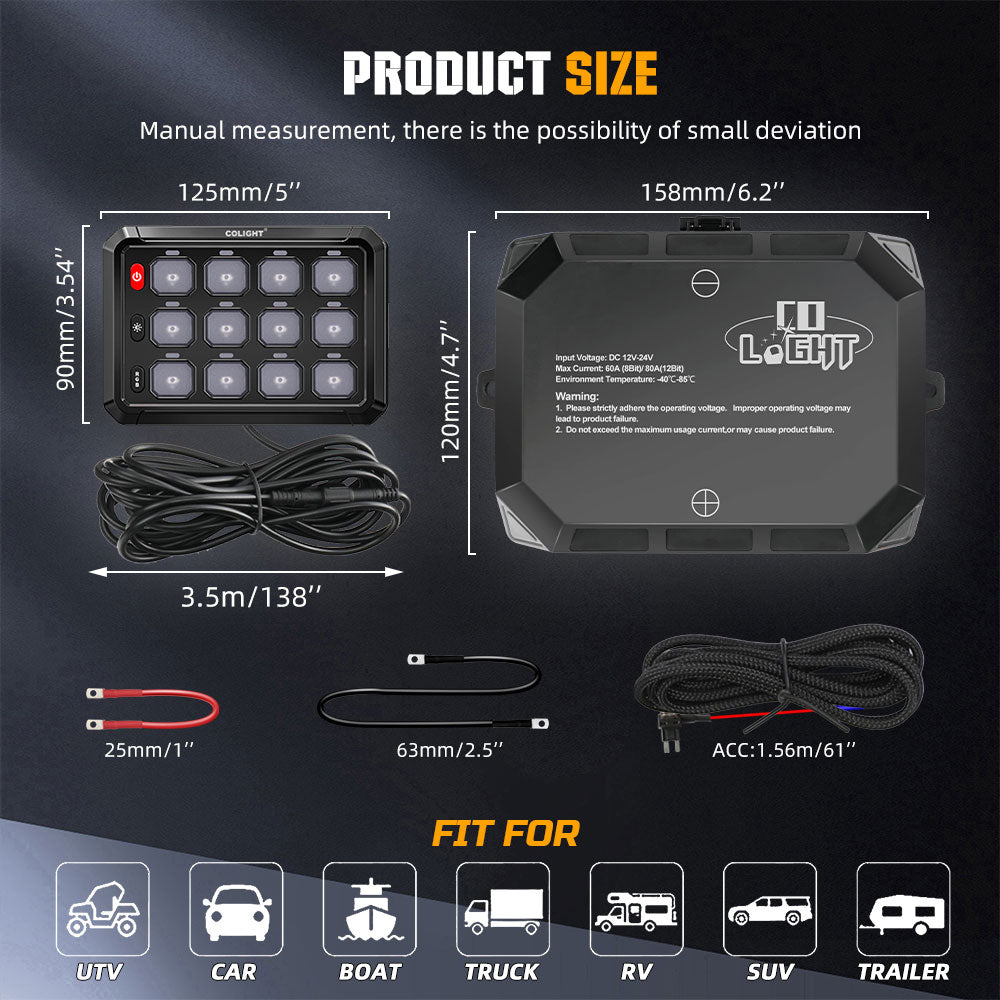

With a large 5” L x 3.5” W x 0.5” H design, this 12 Switch Panel operates at 12V / 24V DC and comes with a full accessory kit for complete installation. The 12 Buttons can be visually customized with 140 self-adhesive labels. Enhance your driving experience with three silicone buttons for ON/OFF, brightness adjustment, and RGB color adjustment. Choose from 100%, 75%, 50%, 25%, and 10% brightness levels, tailoring the lighting to your preferences. Long-pressing the brightness button activates Constant light mode (white), Momentary mode (red), or Pulsed mode (blue). Easily switch between eight single colors (red, orange, yellow, green, blue, purple, white) with a short press of the "RGB" key.
Universal &High Performance

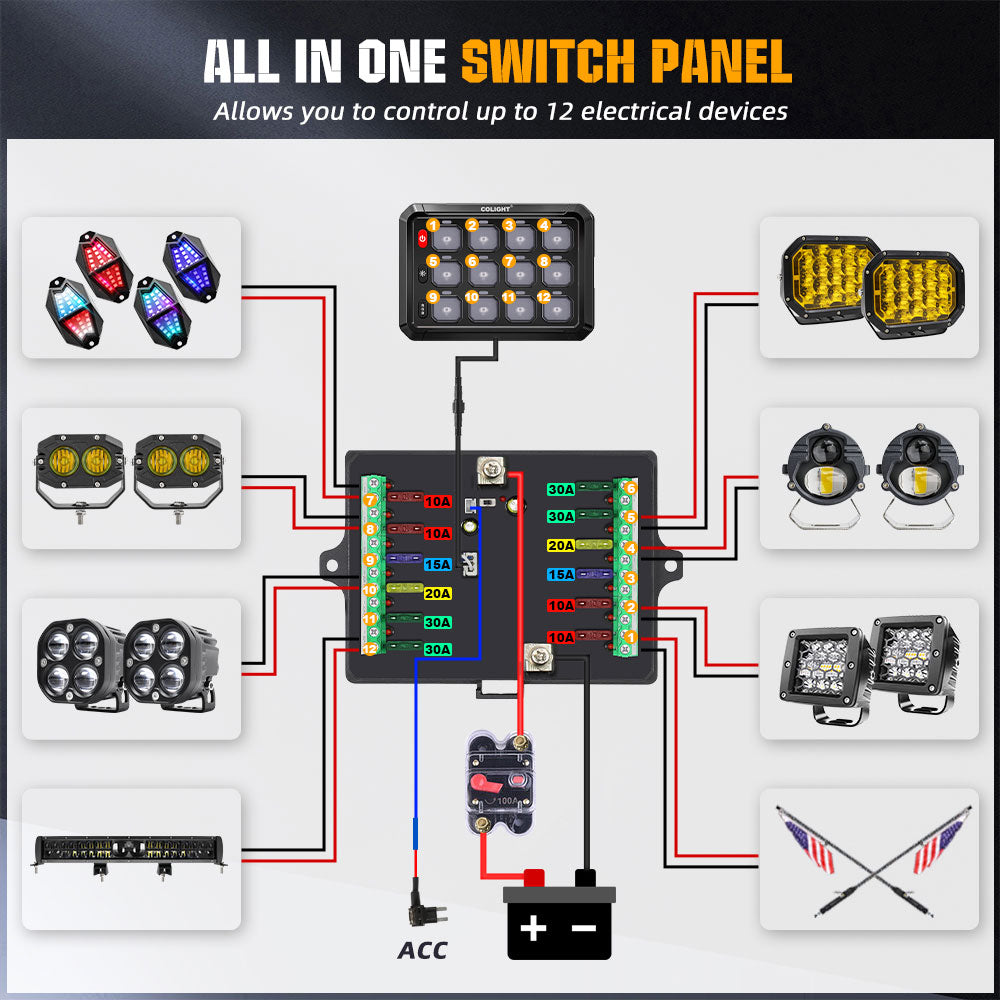

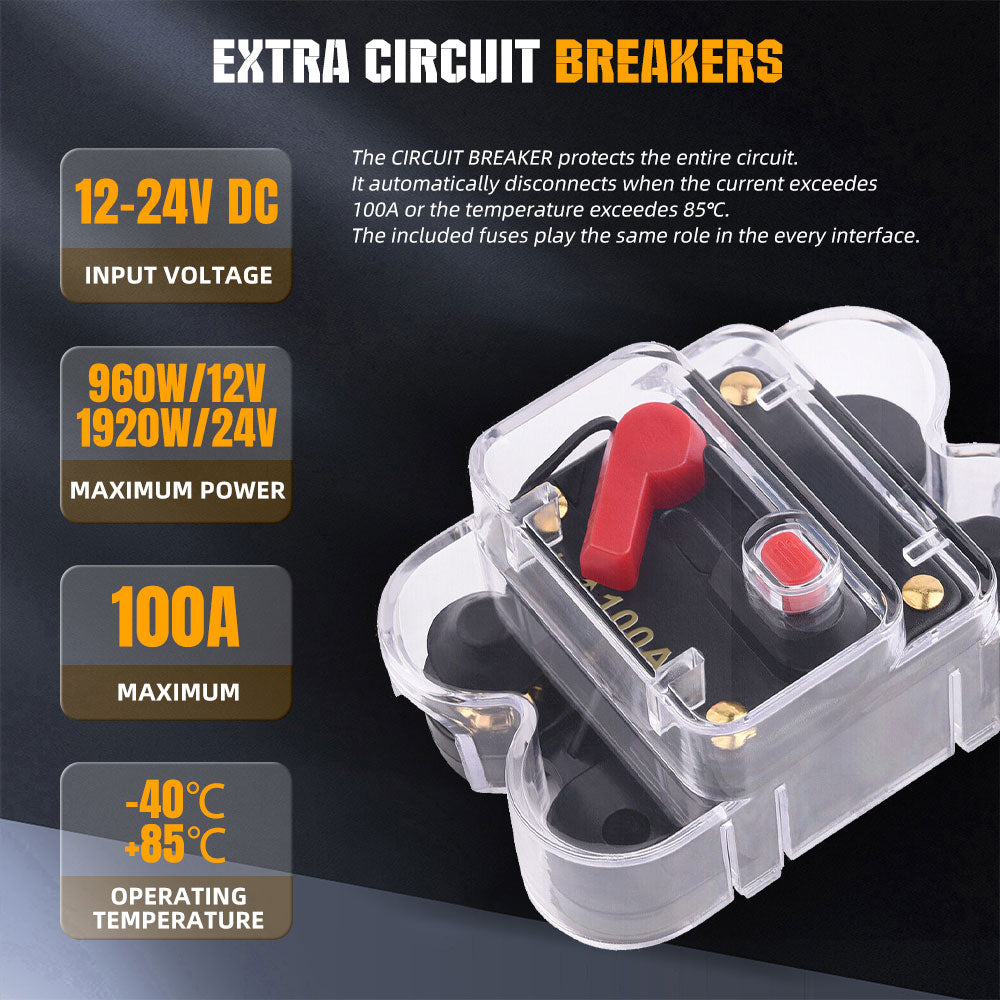

This universal switch panel is made with a rugged brushed aluminum body. With a large current and greater stability, the new switch panel increased by 20% more than the 8gang in size, which is safer&easier to use. The update on the circuit design allows you to connect Four 30A circuits, two 20A circuits, two 15A circuits and four 10A circuits for different lighting applications. In another word, you can control up to 12 lighting devices, such as LED light bars, round driving lights, rock lights, whips lights, horns, etc. When the lighting system exceeds the maximum 100A current, the circuit breaker will automatically stop the current flow to avoid failure. Come with two different mounting brackets and necessary hardware, this smartest switch panel is prepared for any future adventures.

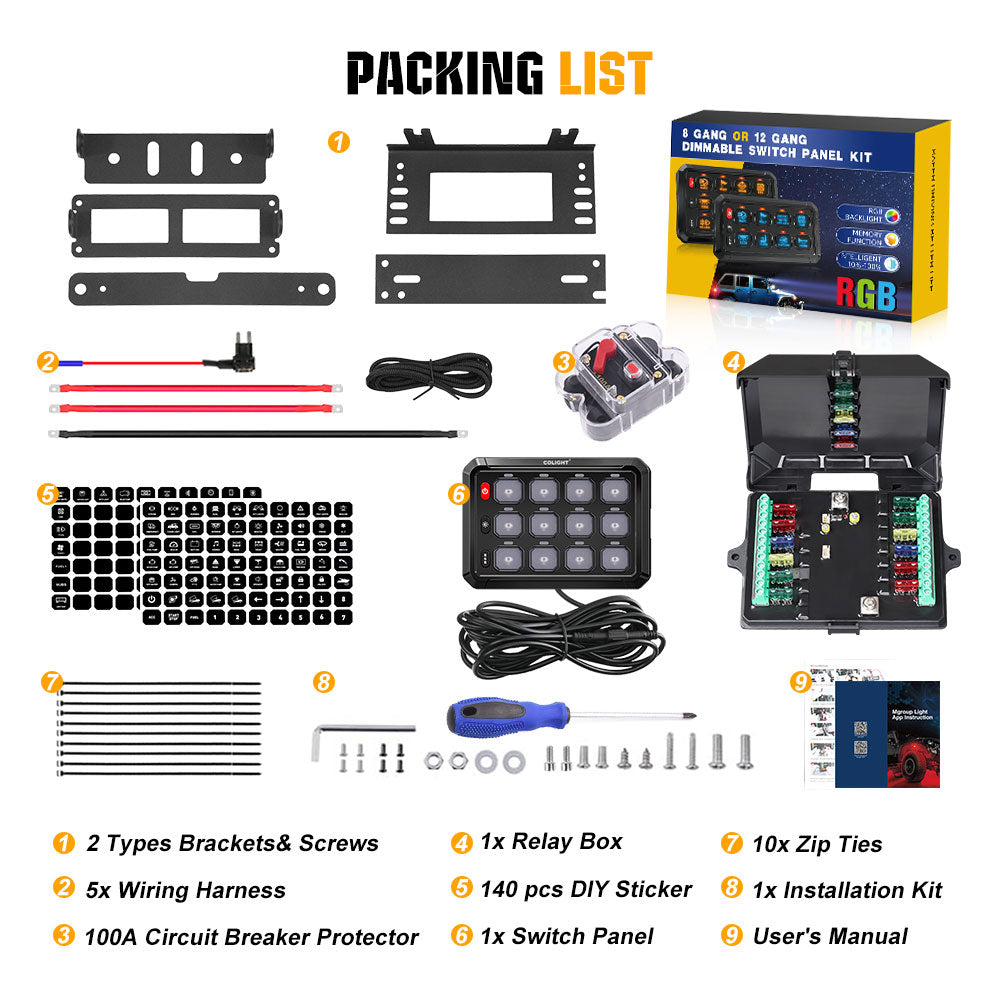

Package Included:
- 1X 12gang switch panel
- 1X circuit fuse box
- 2 types mounting brackets
- 140X self adhesive labels
- 1X 100A circuit breaker
- 3X wires, Cable ties, Screw
